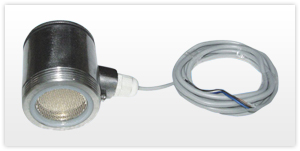

Ultra Sonic Level Transmitter

Salient Features :

  • SensComp, Inc. sensor module from U.S.A
  • Over Voltage Protection
  • Reverse Polarity Protection.
  • Direct or Reverse Action Adjustable at site.
  • Output : 0-5 Volts, 0-10 Volts - 3 Wire System.
  • Optional : 4 to 20 mA Output ( as a separate unit).

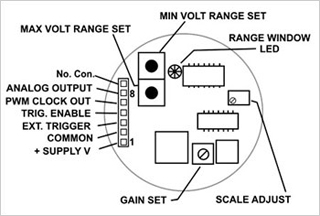

  • Teach-in Push Button Facility for Minimum & Maximum Value Settings.
  • Stainless Steel AISI 304 Housing Suitable for Outdoor Application.

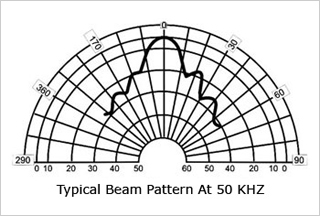

  • Narrow Beam (15 deg) Angle.
  • 50 Khz Electronic Transducer with Integrated SMT Electronic Circuitry.
  • Range from 1-inch to 12-inch, 6-inch to 20 feet or 12 inch to 40-feet.
  • Power Requirements : 8 to 24 VDC for 5V Output / 12 to 24 VDC for 10 V Output (Maximum Current = 30 mA)
  • Operating Temperature -4 to +85 C (-40 to 185 F)
