Cable Suspended Float Switch
Cable float switch is a control device for filling and discharging pumps, motor and magnetic valves. It is also an alarm device at certain pre-determined surface levels. It is suitable for use in non-flammable liquids at 250 volts. In dangerous enviroments (e.g. wells and pumping stations) we recommend 24 V voltage. In potentially explosive atmospheres (e.g. oil tanks) the Switch can be used in conjunction with (Ex) i-isolator switch units. Due to its large float casing the float
Switch has a buoyancy which guarantees smooth, trouble-free operation under all conditions. The switch has double chamber and a final remoulding finish to make it absolutely hermetic.
Installation :

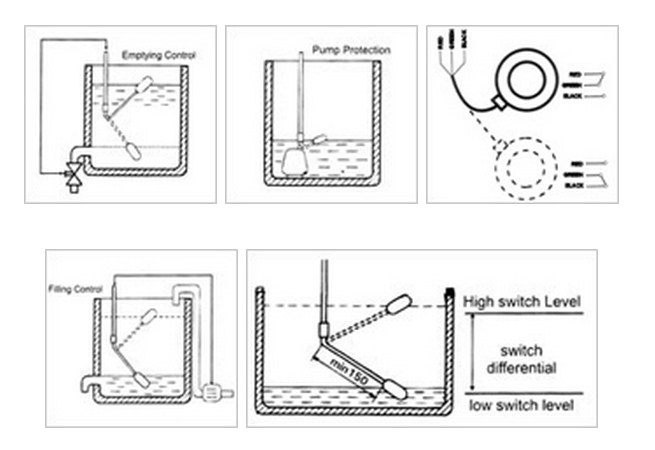

Cable Float Switch is simply placed in the liquid so that the float follows the movement of the surface. The switching height differential is adjusted by moving the weight along the cable. The differential is minimum, when weight is nearest to the float. If the viscosity of the liquid is high, we recommend an extra weight on the cable.
Follower Type :
| Switching Element | micro switch |
|---|---|
| Life of Switch | 1 Lac Operations |
| Rated voltage | 250 VAC |
| Rated Current | 10 Amp at 230 VAC Res |
| Optional | 15 Amp at 230 VAC |
| Pressure rating | 2 Bar |
| Heat rating | 70 degrees C. |
| Standard Cable length | 5 Mtrs (Max. 20 Mtrs) |
| Float material | Polypropylene (PP) |
| Cable insulation | PVC |
| Protection | IP 68 |
